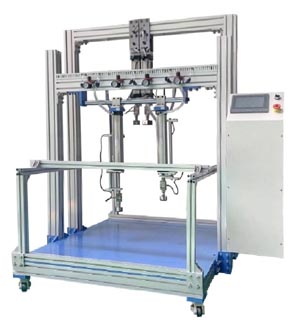

靜態強度試驗機
功能說明:
該向上靜態強度測試機主要用於模擬輪椅車向上靜態強度的驅動及測試系統,可僅對輪椅車扶手、腳托、傾斜桿等部位進行向下
靜載強度的測試,測試技術規範符合GB/T 18029.8-2008 8.8/8.9的要求,具有靜載力、靜載時間、加載次數可設定等功能!
型
號
|
Model |
BA-T02
|
產品名稱 |
Product name |
輪椅車靜載強度綜合試驗機
Wheelchair static load strength tester |
產品簡介 |
Product introduction |
測試輪椅車扶手和腳拖和傾斜桿等部位的靜載強度
Test wheelchair armrests and foot dragging, and tilt-rod static load strength |
符合標準 |
Standard |
ISO 7176-8、GB/T 18029.8 |
顯 示 器 |
Display |
人機介面觸控螢幕 Man-machine interface touch screen |
控 制 器 |
Controller |
PLC可編程式programmable PLC |
荷 重 元 |
Load element |
2000N*4組group |
循環次數 |
Cycle times |
0~99999
可設定(Can be set) |
靜壓時間 |
Static load
time |
0∼100S |
試 驗
台 |
Test bench |
120*140cm (L*D) |
測試方式 |
Test method |
循環或單次靜載 Cycle or single static load |
外形尺寸 |
Size(L*D*H) |
約 About 166*140*195cm
|
重
量 |
Weight |
約 About 180kg |
電
源 |
Power source |
AC220V,60Hz(依據國別或指定specified by user) |
TEL:04-24790097 FAX:04-24793773
