功能說明:
型
號
|
Model |
BA-T04
|
產品名稱 |
Product name |

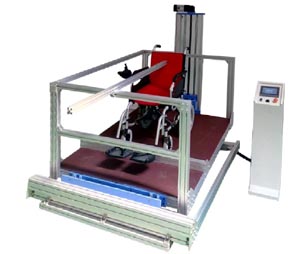

輪椅穩定性試驗台Stability
test bench for wheel chair vehicle |
產品簡介 |
Product introduction |
測試輪椅車各方位在不同傾斜角度下的穩定性Testing the wheelchair stability based on different angles |
符合標準 |
Standard |
ISO 7176-1、GB/T
18029-1 |
顯 示 器 |
Display |
人機介面觸控螢幕
Man-machine interface touch screen |
控 制 器 |
Controller |
PLC 可編程式 programmable PLC |
試 驗
台 |
Tester table size |
L140m
×
W150cm |
傾斜角度 |
Tilt angle |
0°∼45°可調 adjustable |
測試方式 |
Test method |
電動式+點動控制 Electric
+ point control |
驅動裝置 |
Drive |
電機傳動 drive
motor |
傾倒裝置 |
Anti dumping device |
框架式防護護欄 frame
type barrier |
電
源 |
Power source |
AC220V,60Hz(依據國別或指定specified
by user) |
外形尺寸 |
Size
(L*D*H) |
210*175*205cm |
重
量 |
Weight
|
約
about
220kg |
