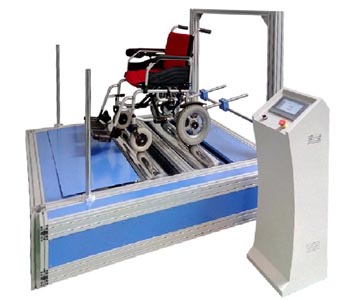

功能說明:
該測試機主要模擬雙輥帶障礙物的滾動系統,並以特定技術規格的(符合GB/T 18029.8規範技術要求)
雙棍輪驅動動系統來測試輪椅車腳輪及相關連接件的整體疲勞性能,具有滾動線速可控可調、實驗迴圈計數累計、試樣空間可調、迴圈次數可設定等功能
型
號
|
Model |
BA-T01-A |
BA-T01-AB |
產品名稱 |
Product name |
雙棍疲勞試驗機(手動輪椅車)Wheelchair double roll fatigue
testing machine(Manual wheelchair) |
雙棍疲勞試驗機(手動電動通用)Wheelchair double roll fatigue
Testing
machine(Manual electric universal) |
產品簡介 |
Product introduction |
兩種款式的雙棍試驗機分別對應滿足不同產品測試需要,用戶可根據測試的實際需要進行靈活的選擇!Two
styles of double stick testing machine corresponding to meet the
needs of different products test, the user can according to the
actual needs of the test to make a flexible choice! |
|
符合標準 |
Standard |
ISO 7176-8、GB/T
18029-8 |
|
適用範圍 |
Range of application |
手動輪椅車專用Special manual wheelchair |
電動、手動輪椅車通用Electric and manual wheelchairs universal |
驅動系統 |
Drive system |
手動輪椅雙棍驅動系統Manual
wheelchair double stick drive system |
手動、電動聯合驅動系統Manual and
electric
compound drive system |
顯 示 器 |
Display |
人機介面觸控螢幕
Man-machine interface touch screen |
|
控 制 器 |
Controller |
PLC可編程式
programmable PLC |
|
雙輥直徑
|
Double roll diameter |
250mm±25mm |
|
速
度
|
Speed |
1m/s±0.3m/s |
|
循環次數 |
Cycle times |
0~99999
可設定(Can
be set) |
|
測試方式
|
Test method |
連續循環往複式continuous
cycle reciprocating |
|
驅動裝置
|
Drive |
電機傳動drive
motor |
|
電
源
|
Power source |
AC220V,60Hz(依據國別或指定specified
by user) |
|
外形尺寸
|
Size |
140*180*150cm(L*D*H) |
|
重
量
|
Weight |
約about
220kg |
