Function:

It uses in the electron industry, automobile industry, solar energy industry, medical industry, textile industry, coating, printing ink, paint, resin, plastics, printing, packaging, binder, cosmetics, metal, outer cover and electroplated product to measure the aging of the products.

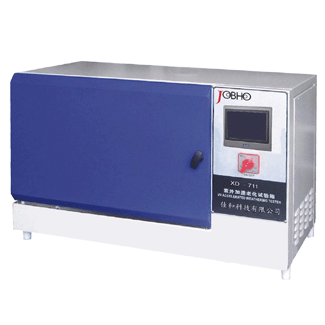

UV  LIGHT TESTER

Feature:

        Simulates in the sunlight the ultraviolet light direct radiation，Uses for to examine is measured aging of condition the outward appearance. Will receive measures the laying aside in the chamber，After several days or several week-long testing times，Is equal to the nature several month even several years later the tired condition. The tired type includes：color change, chalking, cracking, crazing, embitterment, strength loss...stc. The test result may help you to eliminate the unqualified material and to renew the material，And may improve the materials on hand ，Promotes abrasive resistance of the product.

　



Specifications

Produce Specification:

        ASTM D4329、D499、D4587、D5208、G154、G53、BS 2782、EN 534、ECCA T10、ISO 11507、4892-3；JIS D0205、

    prEN 1062-4、SAE J2020。

    UD-401 / UD-411

UD-402 /  UD-412

　

Model	Basic			Standard
Model NO	UD-401	UD-402	UD-403	UD-411	UD-412	UD-413
Interior (WXDXH)cm	32X25X30	60X25X30	120X25X35	32X25X30	60X25X30	120X25X35
Dimension (WXDXH)cm	52X40X60	80X40X60	140X45X65	52X40X60	80X40X60	140X45X65
UV Light Type	UV Light Lamp
UV Light Wavelength	254、313、340nm(Optional)
Temp. Range	NO			+40℃ ~ +100℃
Temp.  Accuracy	NO			±2℃
Power	1∮,220V/110V

 UD-403 /  UD-413

Spectral Power Distributions of UVB-313 Lamp and Sunlight

Spectral Power Distributions of UVA-340 Lamp and Sunlight
