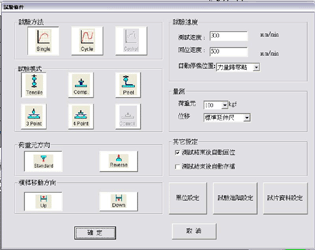

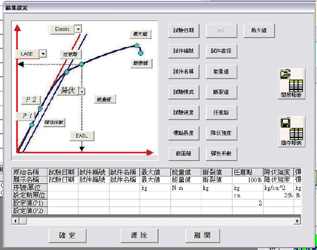

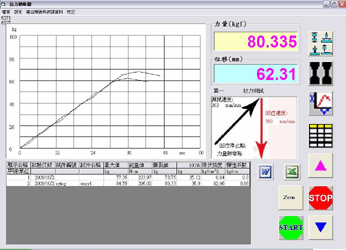

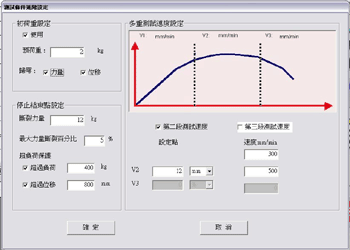

Software Picture:

Step1

Step2

　

Step4

　

Feature:

*Control mode: computer control

*Operate software: Microsoft Windows system

*Language: English and Chinese

*Communication interface: USB transmission

*Data display: Many times of data at the same time show.

*Test item: It is chosen for tensile, compression, pelling, tears, flexure for 3 point, flexure

         for 4 point, creep, fatigue and spring. And can define the test rule by oneself.

*While testing, can set up zero automatically, auto-return and save file.

*Shutting down mode set by oneself.

*Protection: Over-trip and overload protect.

*Resolution of strength: It is modified, and can be up to 1/200000.

*Test database system.

*Unit: Strength, length, stress, time, energy and speed are available. Include the metric

      system and unit made in Great Britain, and can set up number of the decimal point.

*Real-time data: Having five kinds of data, and the unit can be modified by oneself.

*Curve: X and Y axle unit can be modified.

*Many test curves can be compared at the same time.

*The formula is chosen: Offer greatest strength, greatest stress, the coefficient of

                    elongation, elastic coefficient, subdue some, energy, modulus to

                    fetch some and average number value of culmination. Can edit

                    the formula of calculating by oneself.

*Statistical analysis: Can set up the statistic item, such as average, standard deviation,

                maximum and minimum.

*Many section system is calibrated to raise precision.

*Test data and form can be led out for EXCEL file.

　

Step3
