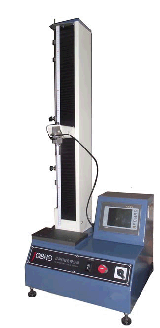

Function:
The machine can measure tensile of materials, including rubber, plastic, leather, metal, nylon, fabric, paper, packing and electric wire…etc. The test that it offers the pulling force, pressure, strips, tears, and offer the figure and data.
Feature:
1. Using ball scroll, can reduce the mechanical error.
2. Using servo control system and tooth type belt, can reduce the position error.
Specifications
| Model NO | TD-121 | TD-122 | TD-123 | TD-111 | TD-112 | TD-113 |
| Capacity (Kg) | 10 ~ 100 | 200 | 500 | 10 ~ 100 | 200 | 500 |
| Unit | kg,g,N,Lb | kg,g,N,Lb(Optional) | ||||
| Load Accuracy | ±0.5% | ±1% | ||||
| Load Resolution | 1/100,000 | 1/10,000 | ||||
| Load Magnifying Rate | x1, x2, x5, x10, x20, x50, x100Auto-Range | No | ||||
| Test Speed | 0.001 ~ 1000mm/min | 25~ 500mm/min | ||||
| Stroke (exclude the grips) | 920mm | |||||
| Stroke Resolution | 0.001mm | 0.025mm | ||||
| Sampling | 500HZ | 20Hz | ||||
| Control Model | Computer | Micro-Computer | ||||
| Motor | AC Servo Motor | DC Motor | ||||
| Power | 1∮,220V,5A | |||||
