PROGRAMMABLE TEMPERATURE & HUMIDITY TESTER

Function:

  The machine offer high temperature and high humidity environment. It is test material quality and intensity decay for rubber, plastic and PC board.

   It can simulate high temperature and high humidity environment, various kinds of materials will fade and shrink.

Feature:

It can simulate the temperature and humidity of the weather environment, detects the change of products material.

    PS. Accord with international standard. (IEC, JIS, GB, MIL,ASTM …tec).

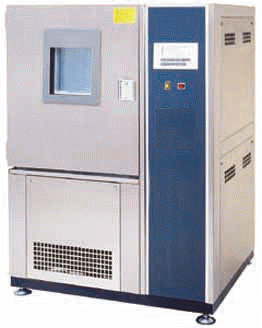

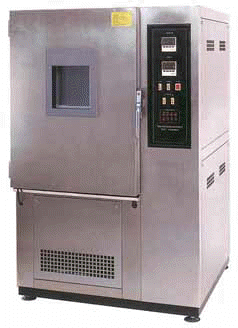

CL-331/CL-332/CL-333



CL-321/CL-322/CL-323

Control Panel

English panel

Temperature and humidity distribution curve plot

Model	Classic			Standard			Basic
Model NO.	CL-331	CL-332	CL-333	CL-321	CL-322	CL-323	CL-311	CL-312	CL-313
Control Model	Programmable Control System						Single Control System
Interior (WXDXH)cm	50X60X75	60X80X85	100X80X100	50X60X75	60X80X85	100X80X100	50X60X75	60X80X85	100X80X100
Dimension (WXDXH) cm	102X118X162	112X138X172	152X138X187	102X118X162	112X138X172	152X138X187	102X118X162	112X138X172	152X138X187
Temp. Range	-40℃ ~ +100℃ or  -20℃ ~ +100℃
Humidity Range	20%R.H ~ 98%R.H
Temp.  Accuracy	±0.5℃
Humidity Accuracy	±2.5%R.H
Heating Up	-40℃ ~ +100℃ Within 45min & -20℃ ~ +100℃ Within 35min
Cooling Down	+20℃ ~ -40℃ Within 60min & +20℃ ~ -20℃ Within 45min
Interior Material	Stainless steel plate (SUS 304)
Insulation	rigid polyurethane foam/glass wool
Refrigeration System	air cooled
Safety	break, refrigerator over-load protection relay, refrigerant high pressure switch ,air circulator thermal switch, ceramic fuse ,boil dry protector
Accessories	freely adjustable 2 pcs
Power	3∮,220V

　

 Temperature and humidity distribution curve

 Chinese control panel (example)

       Control Panel

Switching for Chinese and English

　



  　

 Computer Software（example)
